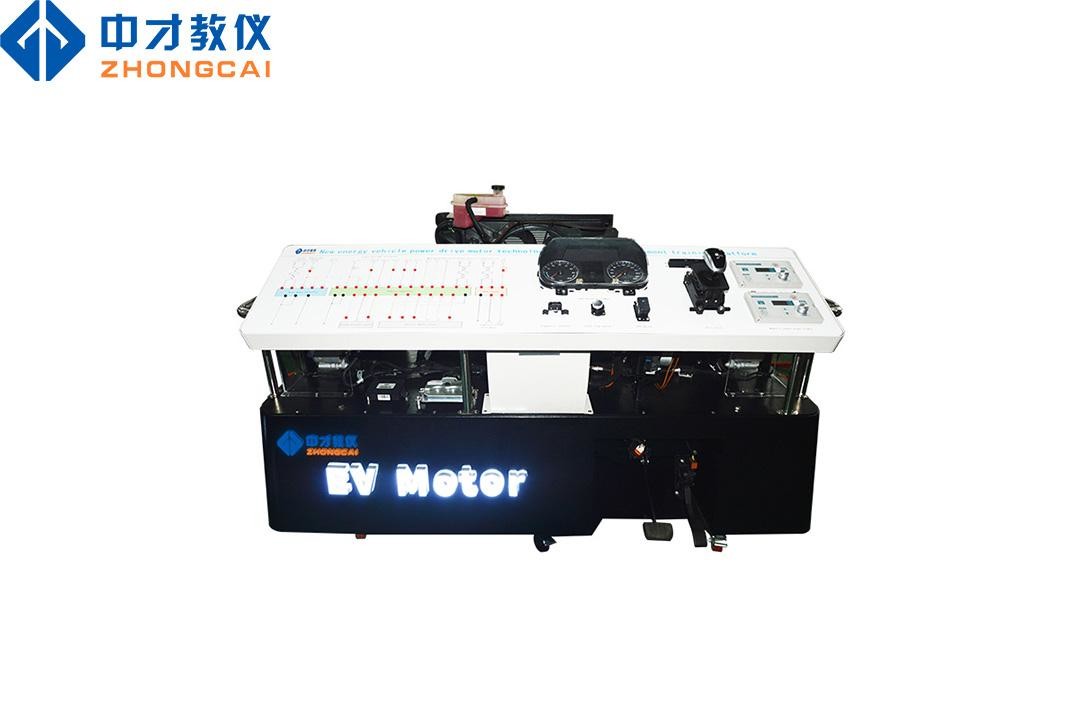

This bench contains the three core electronic controls of new energy vehicles, vehicle controller VCU, motor controller MCU, and battery management system BMS. It also provides the hardware schematic diagram and software source code of VCU MCU BMS respectively. Students or engineers can use We provide software and hardware platforms, modify the code, and conduct secondary development and verification. The platform includes a motor towing platform and has the ability to operate the motor on four-phase lines. The motor towing platform is equipped with a dynamic torque sensor, which can dynamically measure key parameters such as motor torque, speed, power, and efficiency. It is equivalent to a full set of functions of a motor dynamometer. The bench is equipped with 36 strings of lithium iron phosphate batteries and is equipped with a self-developed BMS, which can complete the BMS's functions of monitoring the voltage, temperature, and current of the lithium battery. The VCU MCU BMS of this bench adopts the industry-leading V-shaped development process, and the algorithm part is modeled and generated using MATLAB. Meet the rapid development and iteration requirements of the automotive industry. In summary, this bench can be used as a verification test platform for the development of new energy vehicle three-power systems. It is of great help to improve engineers' development capabilities and complete three-power joint debugging experiments. 2: Composition of new energy bench test bench 1) The new energy test bench is built based on real automobile parts and aluminum profile simulated car bodies . 2 ) The operation panel adopts a simulation teaching-style easy-to-understand operation panel, integrating various operation switches and simulation knobs to test some special working conditions. 3) The new energy vehicle controller uses the independently developed and advanced NXP 32-bit MPC5744 as the main chip for modeling and development. ( 2) Technical requirements 1 ) The bench controller can complete data monitoring on the host computer . 2) The bench can simulate various working conditions . 3) The control panel has corresponding work indicator lights and measuring holes. You can learn the working sequence and status of each workpiece based on the indicator lights. You can use a multimeter to measure the actual voltage of the wires on the schematic diagram according to the measuring port. 3 : Introduction to VCU The automotive-grade SPC5744MCU processor is used for architectural design. Based on customer requirements, we now make the following peripheral configurations: High control switch 10 channels PWM drive power stage 12 channels High side driver power stage 7 channels Low-side power stage drives 8 channels Hall type acquisition trigger acquisition waveform digital acquisition 12 channels Analog ADC acquisition uses chip isolation to process 14 channels Low control switch 7 way Stepper motor power stage 5 wire type 4 groups CAN communication 3 channels LIN Road 1 The architecture diagram is as follows 4 : Introduction to models This model is built based on NXP's simulink hardware support package, basically achieving zero code. Supports online simulation, one-click code generation, SD32 compiler burning and other cutting-edge software. First use should follow the following environment setup: Development environment of MATLAB2018a SD32 open compiler USB_56xx_68xx burning emulator Mpc5744 toolbox Basic introduction to the model main structure: The logic part has detailed Chinese comments, and the content is simple and clear! Ctrl+B generates executable code After the development environment is set up, it will directly generate code to the SD32 development environment. We only need to open SD32 to compile and simulate.

We are excited to announce the launch of our state-of-the-art full Vehicle Electrical Training equipment designed for automotive training institutions. This innovative training equipment supports a wide range of vehicle models, including popular brands such as Volkswagen, Toyota, Chevrolet, and Buick. Our versatile training solutions ensure that students gain hands-on experience with the latest automotive electrical systems. What sets our full Vehicle Electrical Training equipment apart from competitors is its extensive functionality. Unlike other training equipment on the market, our systems allow for in-depth exploration of various electrical components, providing a comprehensive understanding of vehicle electrical systems. This includes everything from wiring diagrams to troubleshooting techniques, making it an ideal choice for vocational schools and automotive training centers. In addition to standard models, we offer customizable options to meet the specific needs of our clients. Whether you require specialized modules for certain vehicle brands or unique training scenarios, our full Vehicle Electrical Training equipment can be tailored to fit your requirements. This flexibility ensures that institutions can provide the most relevant training to their students, preparing them for real-world automotive challenges. We believe that investing in our comprehensive full Vehicle Electrical Training equipment will significantly enhance the educational experience for students and help them become proficient automotive technicians. Stay ahead of the curve in automotive education with our advanced training solutions! For more information about our products and customization options, please contact us today!

In a significant development, our company recently hosted a visit from a valued client who expressed high satisfaction with our existing new energy products. During this visit, they introduced an ambitious request: to create a complete training set for new energy vehicle training equipment based on the Tesla Model 3. Key Highlights Challenge Accepted: Although we have previously developed models of specific Tesla products, this will be our first complete suite. Our engineering team enthusiastically accepted this challenge, showcasing our commitment to innovation and adaptability. Expertise in New Energy Vehicle Training Equipment: This project underscores our capability in the field of new energy vehicle training equipment. We are dedicated to meeting the evolving needs of our clients with high-quality solutions. Commitment to Excellence: With our skilled team and comprehensiv e resources, we are confident in our ability to deliver a robust training system that exceeds client expectations. Stay tuned as we embark on this exciting journey to enhance our offerings in new energy vehicle training equipment, demonstrating our ability to overcome challenges and deliver exceptional results. GUANG DONG ZHONGCAI EDUCATION EQUIPMENT CO.,LTD ADD: #314 Building 3, Minjie Technology Innovation Center 1633, Beitai Road, Baiyun District, Guangzhou, China Email: biz.w@gdzcee.com Website: www.gdzcee.com or www.zcequipment.com Tel/Wechat/WhatsApp: +86 18529153085
